Transquip

Top Transfer Angle Valves

Rego TA784P

Jamesbury 5RNT

Jamesbury 6RA3

Transquip, Railway, Tank Car, General Purpose Valves, Pressure Car Valves, Acid Cars, Chlorine Cars, Crude Oild Cars, Ethanol Cars, Jamesbury, Threaded Valves, Threaded x Flanged Valves, Flanged Valves, Liquid Valves, Vapor Valves, Repair Kits, Balls, Stems, Rego, Top Transfer Valves, Check Valves, Excess Flow Valves, Dual Shear Off Package, Thermowells, Fort Vale, Manway, Pressure Relief Devices, PRD, Safety Relief Devices, SRV, Vacuum Relief Devices, Gaskets, O-Rings, Bottom Outlet Valves, Bottom Outlet Handles, BOVs, Eyebolts, Nozzles, Caps, Plugs, Chains, Cover Plates, Dixon, Quick Disconnects, Dry Disconnects, Flanges, Saddles, Level Devices, Rupture Discs, Midland Valves, McKenzie Valves, ARI Valves, Apollo Valves, AAR, FRA, Bulletin, IMO,

Top Transfer Angle Valves

TA7894 Stem Pic.png





NEW REGO ta7894pL

Features

ALL THE FEATURES OF THE ORIGINAL TA7894P WITH ADDED ANTI-TAMPER LOCKING PIN

•       Ability to cable tie the handwheel closed, preventing any unauthorized actuation of the handwheel

•       Added security that the load is Sealed, Secured & Tamper Proof when released for shipment

•       Low Profile

•       High flow

•       Self adjusting spring-loaded v-ring stem seal

•       10 year warranty

Specifications

•        AAR Number              E232122

•        Size range                   2”

•        Materials                    Ductile Iron

HASSLE FREE STEM SEALS

Typical stem packing works by repeatedly compressing the Teflon seals.

The Rego uses a spring-loaded the‘V’ contoured ring to provide a leak-tight seal without need to ever retighten

The higher the pressure within the valve, the more effective the seal becomes.

A wiper ring, located above the seal, keeps the seal free from grit, and/or other foreign material.



JAMESBURY 5RNT

Features

•        Standard port

•        Tongued flange

•        Quick quarter turn operation

•        600 psi at ambient temp

•        Low fugitive emissions

•        Bubble tight shut off

•        Fire Tite Design to API 607

Specifications

•        Size range                   2” / DN 25 – 50

•        Materials                    Stainless body

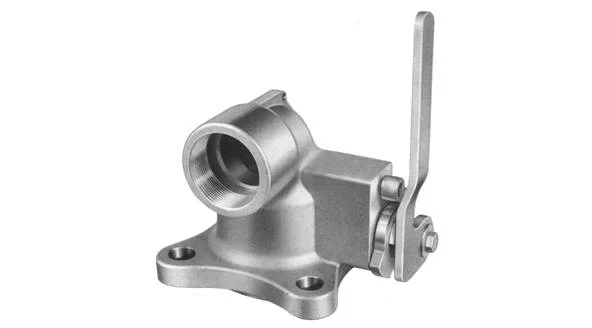

JAMESBURY 6RA3

Features

•        Full port

•        Tongued flange

•        All seat options

•        Quick quarter turn operation

•        600 psi at ambient temp

•        Low fugitive emissions

•        Bubble tight shut off

•        Fire Tite Design to API 607

Specifications

•        Size range                   2” / DN 25 – 50

•        Materials                    Carbon and stainless body
