Pressure Relief Valves

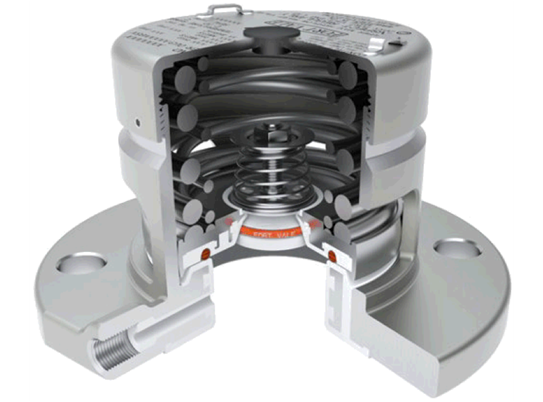

OR4 Cutaway.jpg

0U3 Web Image.png

FORT VALE 0R3 XXXX006X

Features

•        100%  Stainless Steel

•        Externally Mounted

•        Low Profile

•        75 or 165 psi (10131 or 22286 SCFM @ 120%)

•        16 Seal Types

•        6 Flange Types

Substitutes Midland A1775 through A17454 Series

Specifications

•        AAR Number              PRD232129

•        Size range                   2.5”

•        Materials                    Stainless Steel



fort vale 0R4 X 075 00 130 X

Features

•        100%  Stainless Steel

•        Externally Mounted

•        Low Profile

•        75 psi (31676 SCFM @ 85 psig / 35627 SCFM @ 97.5 psig)

•        15 Seal Types

•        2 Flange Types

Substitutes Midland A1775 through A17454 Series

Specifications

•        AAR Number              PRD232127

•        Size range                   5.1”

•        Materials                    Stainless Steel

fort vale 0U3 P XXX 00 6 R

Features

•        100%  Stainless Steel

•        Externally Mounted

•        165 psi (22286 SCFM @ 198psi / 24000 SCFM @ 214.5psi)

•        Halar Coated Springs

•        2 Flange Types

•        Substitutes Midland A22075

Specifications

•        AAR Number              PRD232129

•        Size range                   2.7”

•        Materials                    Stainless Steel
